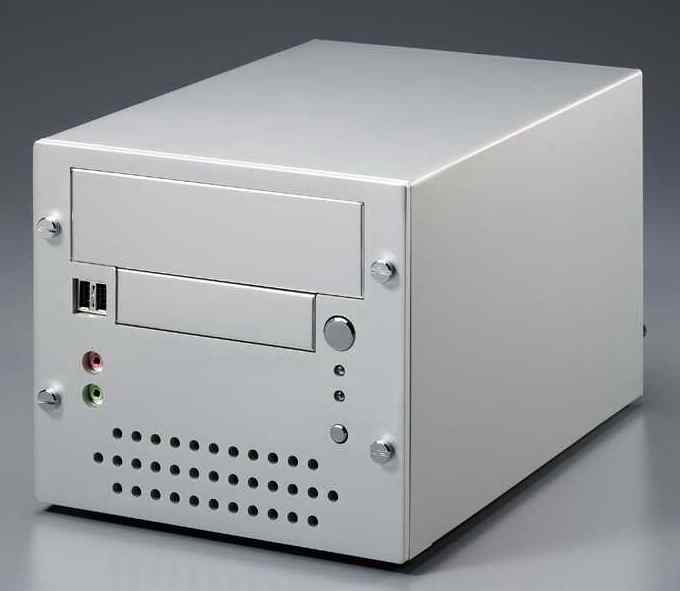

Magic
Cube
S.Box-212
|
|
|
|
Magic
Cube |
||
|
||
|
S.Box-212 |
| Specification : |
| CPUs |
Support VIA C3 800 MHz or Eden 533 MHz CPUs on board |
| Chips |
VIA VT8601A North Bridge & VT8231 South Bridge |
| Memory |
2 x 168 pin DIMM Memory socket, Support up to 1GB SDRAM (PC100/133) |
| IDE |
Support ATA 33/66/100 Bus Master IDE ports |
| I/O |
Integrated with PS/2 Mouse & K/B, FDD, Serial, Parallel & Fast IR controller |
| LAN |
VIA VT6103 chip set, Support 10/100 Mbs Ethernet LAN |
| USBs |
Support USB 1.1 ports, 2 x Rear panel, 2 x Front Panel |
| Expansion |
1 x PCI slot for fully size interface card |
| Power |
150W Power Supply for Pentium III solution |
| TV-OUT |
VIA VT1621 chip set, Support S-Video & Composite video output for NTSC/PAL TV |
| Driver
Bay |
1 x 5.25" , 2 x 3.5" (1 x hide) |
|
Dimension
: 170W
x 190L x 280H mm
|
