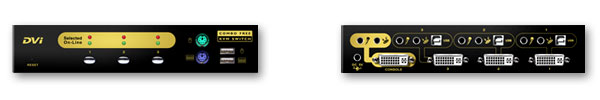

Model No. KCF-131DA

Overview
Advantages: (Patent No. TW M 284961)
  • Console your Keyboard/Mouse via either way of PS/2 and/or USB arbitrarily.
  • Controls 3 DVI computers from a single console (Keyboard/Mouse) over USB connections.
Package Contents
  • 3-Port DVI COMBO FREE KVM SWITCH W/ Audio.
  • User's Manual.
  • Three sets of custom (DVI, USB+2 x 3.5 mm audio) cables
Features
  1. Console your Keyboard/Mouse via either way of PS/2 and/or USB arbitrarily.
    ¡@
  2. Controls 3 DVI computers from a single console (Keyboard/Mouse) over USB connections.
    ¡@
  3. Supports Windows, Linux, Mac OS9/OSX, Sun.
    ¡@
  4. Emulates a keyboard on each PC to allow your computers to boot normally without a keyboard error.
    ¡@
  5. Supports hot-swap. All devices connected to the KVM can be added or removed at any time, without shutting the unit down.
    ¡@
  6. Supports 2 types of switching:
    (1) Hardware Push Button, (2) Hot-Keys on PS/2 and/or USB of keyboard arbitrarily.
    ¡@
  7. Supports Auto-Scan function to switch video automatically among computers in preset intervals sequentially.
    ¡@
  8. Supports LED display for PC status monitoring.
    ¡@
  9. Supports DVI UXGA resolutions up to 1600 x 1200.
    ¡@
  10. Supports Beeper during switching enabled.
    ¡@
  11. Enabled audio ( Mic / Speaker ).
    ¡@
  12. Self powered through PS/2 and/or USB connection.
    ¡@
  13. Fully compliant with the USB 1.1/ 2.0 specification.

¡@

Specifications
Number Of Computers Controlled3
Selection MethodPush Button and Hot-Key (PS/2 and/or USB Keyboard)
LEDsRed for PC Selection
Green for PC On-Line ready
PC ConnectorsUSB3 x USB ( type B ) female
Video3 x DVI UXGA female
Audio3 sets ( speaker / Mic )
Console PortsKeyboard 1 x 6 pin mini-DIN female
Mouse1 x 6 pin mini-DIN female
Video1 x DVI UXGA female
Keyboard1 x USB - A type female
Mouse1 x USB - A type female
Audio3 sets ( speaker / Mic )
Auto-Scan IntervalFrom 5 to 250 Seconds
DDC, DDC2 DVI UXGA monitorYes ( Max. Resolution: 1600 x 1200 )
Hot SwappableYes
Operating systems supportedWindows 98SE/ME/2000/XP/2003 Server, Linux
Mac OS9/OSX and Sun Micro System
AudioEnabled ( Mic / Speaker )
PowerBy PS/2 and/or USB or External Power Adaptor (Optional)
Cable Length6 feet (1.80 Meter)
Dimensions (L X W X H)21.5 x 8.8 x 4.5 cm (5.5 X 3 X 1.7 inches)
Unit Weight650 g
Housing materialMetal
Operating Temperature32~ 122¢XF (0~ 50¢XC )
Humidity0%~80%RH

¡@

¡@

¡@
